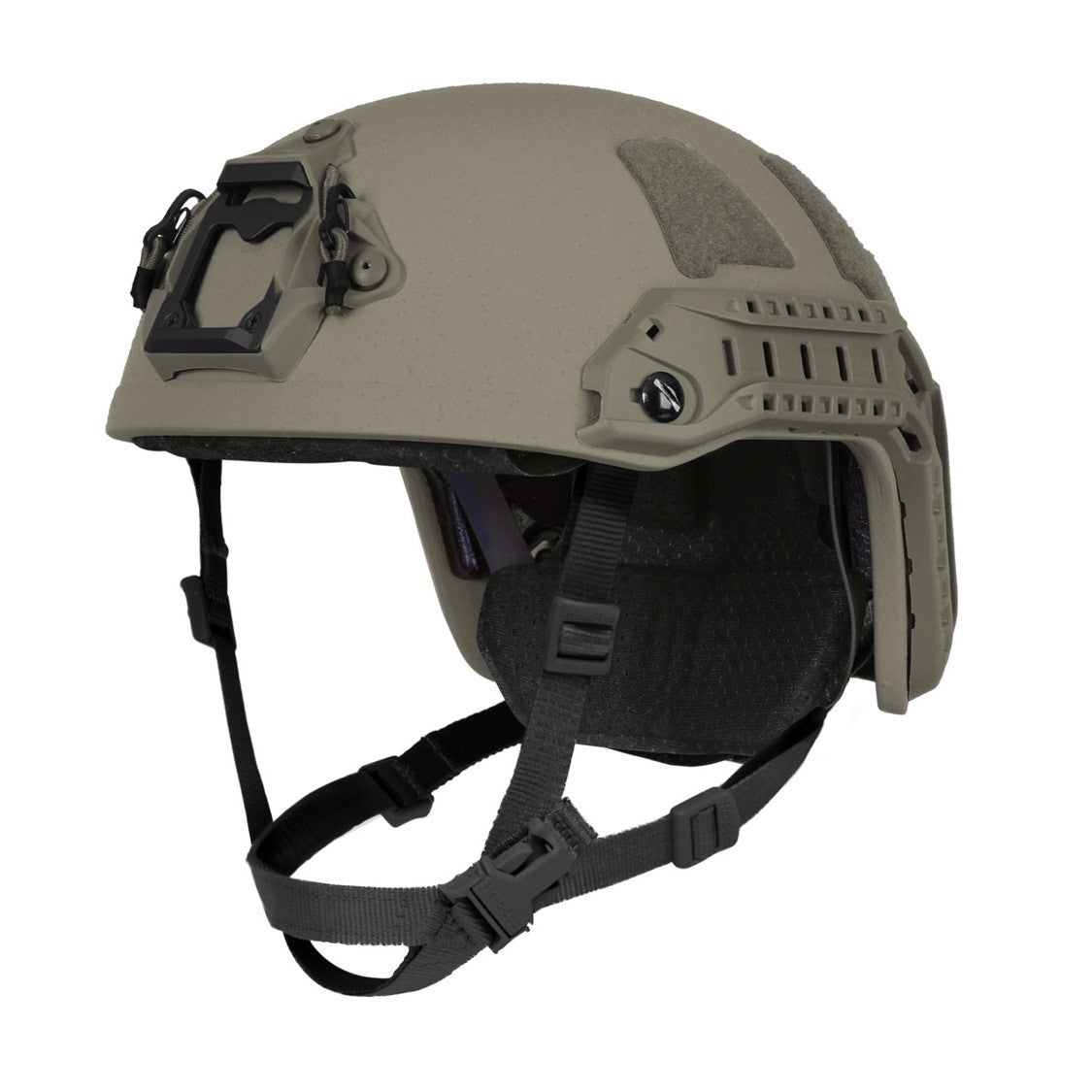

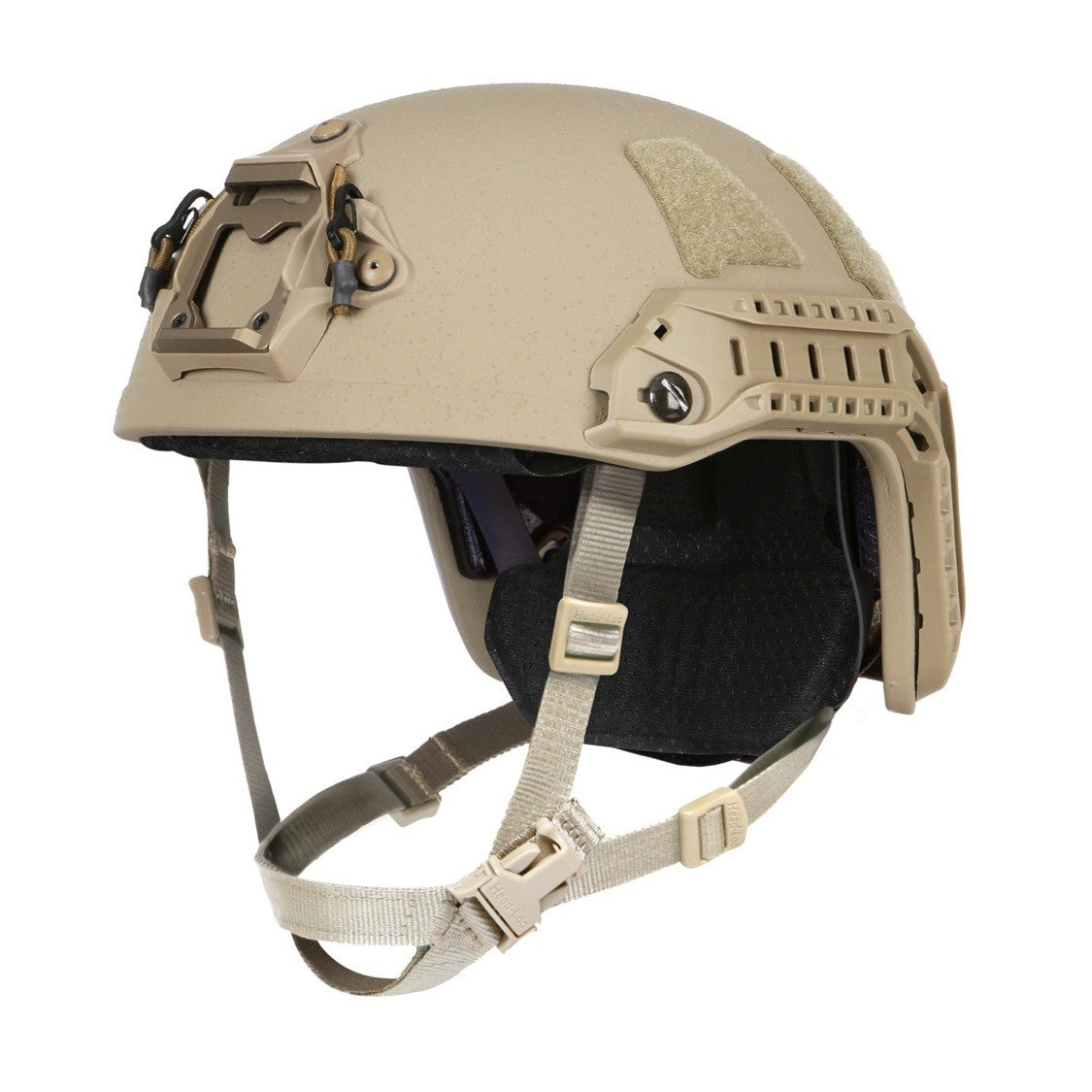

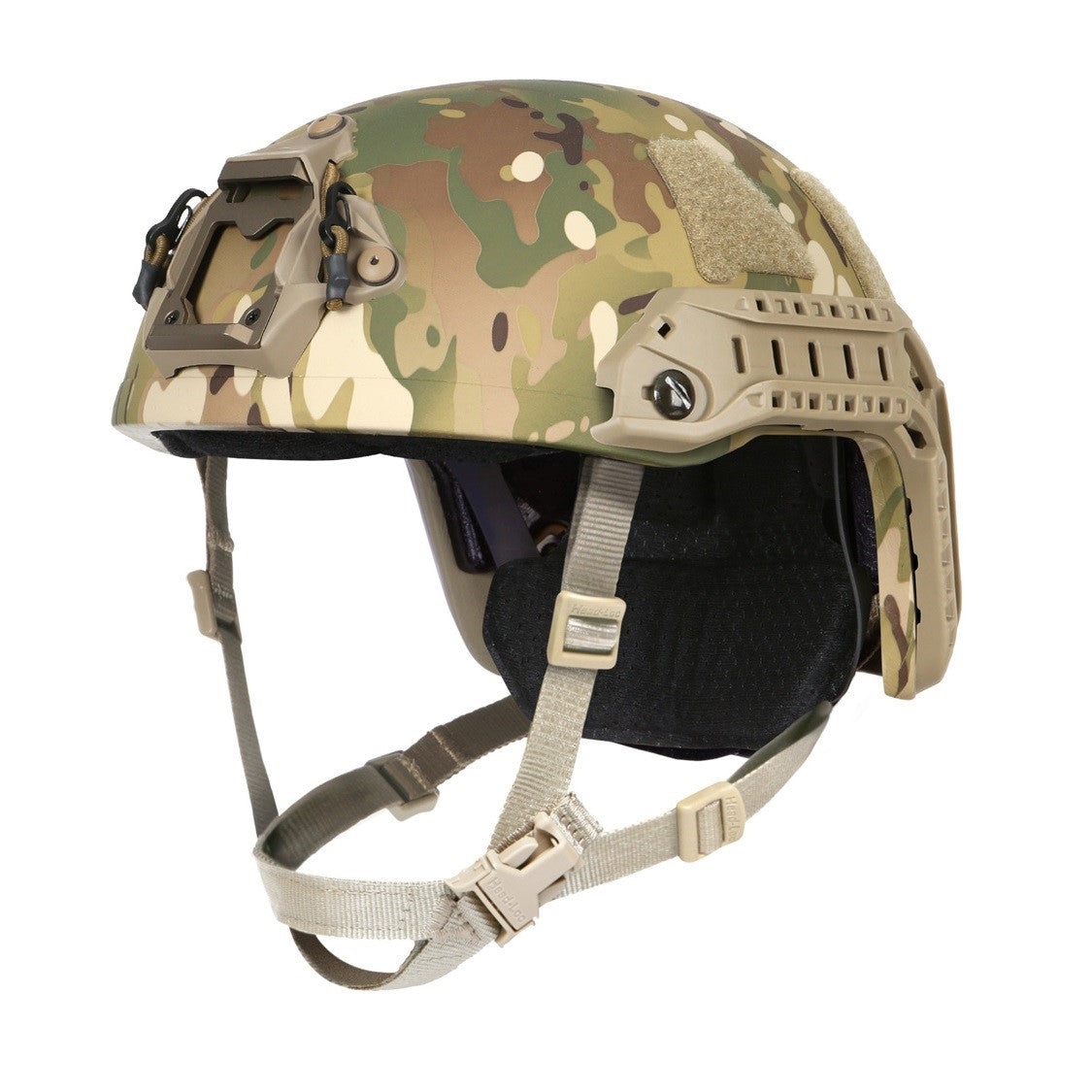

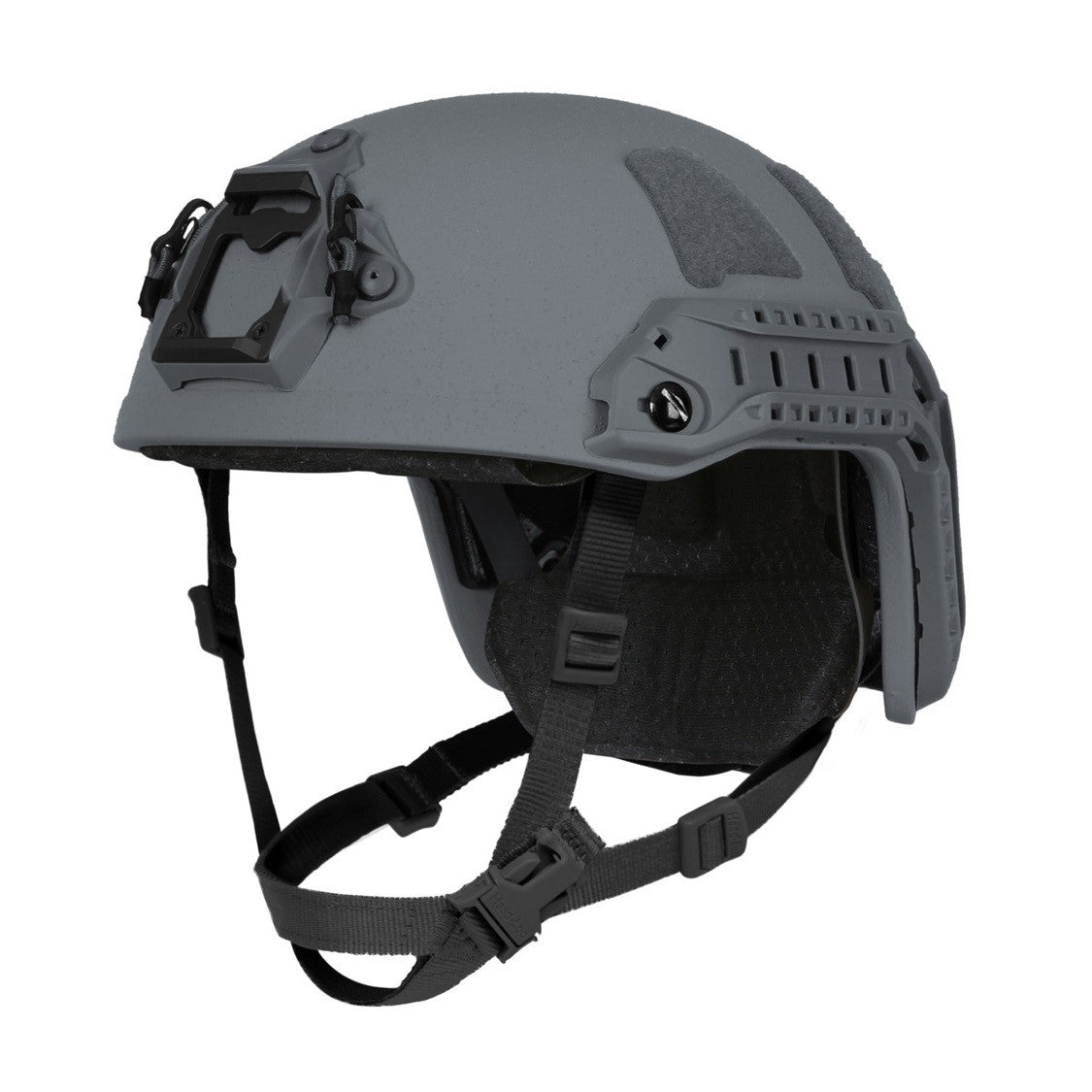

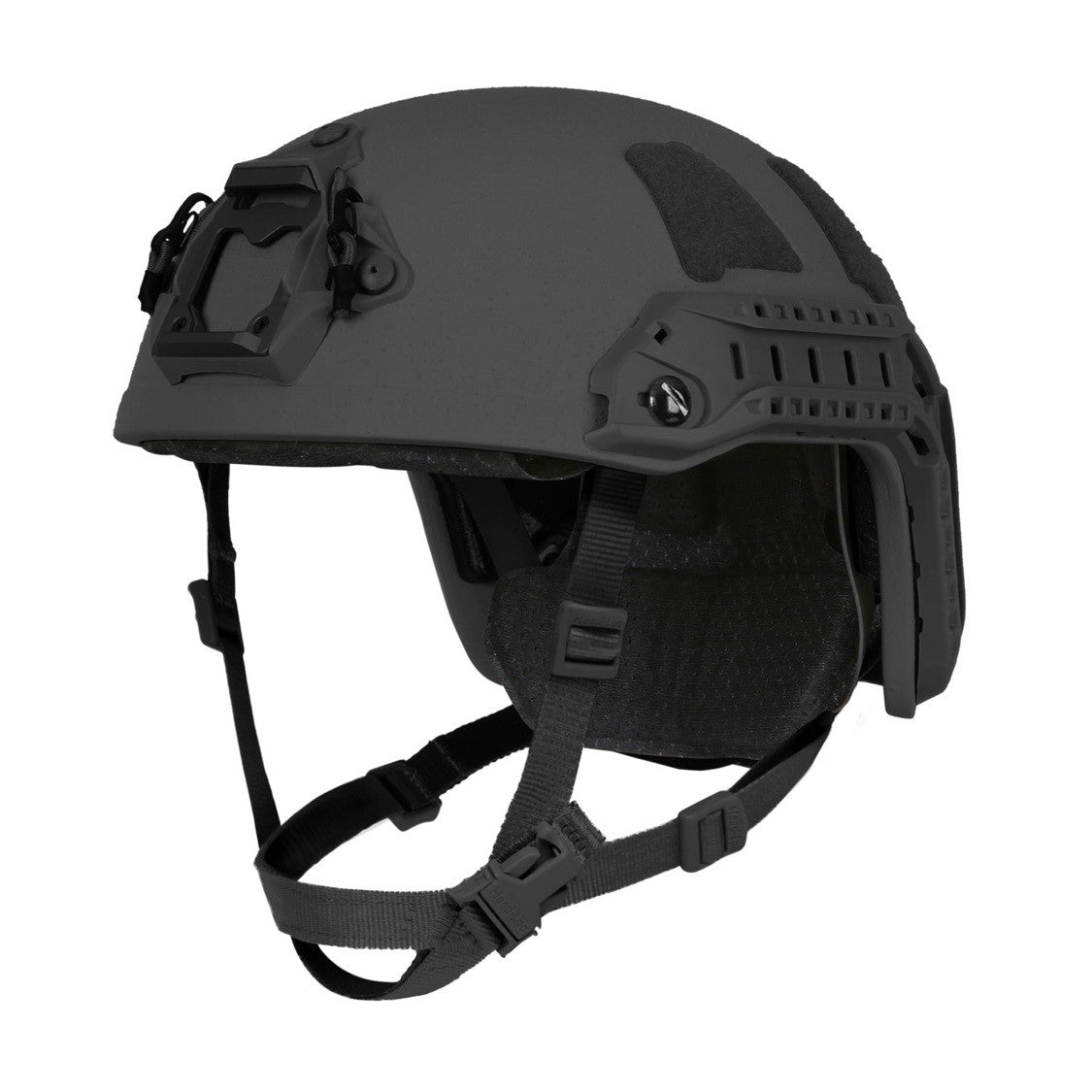

The Ops-Core FAST XR helmet is part of the FAST ballistic protection helmet family. Its innovative, lightweight design resists penetration of up to a 7.62x39mm lead core round and protects against Level IIIA / HG2 handgun projectiles and frag, at a weight of 2.81lbs (Large). The FAST XR integrates into Ops-Core’s total headborne system solutions which include situational awareness, optics, and respiratory protection.
• Lightweight design capable of resisting a 7.62x39mm lead core projectile.
• High cut, ballistic shell made of a hybrid composite of the most advanced carbon, unidirectional polyethylene, and woven Aramid.
• High cut shell geometry extends critical coverage over the rear occipital lobe without load carrier interference and optimizes weight distribution for increased stability, integration, balance, and improved comfort.
• Low Profile Skeleton Rail system offers a lightweight mounting system for the headborne eco-system.
• Molded liner features proprietary recessed channel, accommodating over-the-head communications headsets with no interference or user discomfort, and ability to doff and don helmet without removing the headset.
SPECIFICATIONS
Performance Specification: In accordance with Gentex PS1519
NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ / 44mag @ 1,400 ft/s) Threats
Fragmentation Protection:
| Projectile | Minimum V50 BL(P) at 0°(±5°) Obliquity (ft/s) | Minimum V50 BL(P) at 0°(±5°) Obliquity (m/s) |
| 2 - Grain RCC | 5,300 | 1,615 |
| 4 - Grain RCC | 4,360 | 1,329 |
| 16 - Grain RCC | 3,315 | 1,010 |
| 64 - Grain RCC | 2,210 | 674 |
| 17 - Grain FSP | 3,250 | 991 |
Resistance to Penetration:
|
Projectile
|
V0 RTP at 0°(±3°) Obliquity (ft/s)
|
V0 RTP at 0°(±3°) Obliquity (m/s)
|
| 9mm FMJ RN, 124 gr |
1,470
|
448
|
| 9mm x 18mm SJLC, 105 gr |
1,017
|
310
|
| .44 Mag SWCGC, 240 gr |
1,430
|
436
|
| .44 Mag JHP, 240 gr |
1,430
|
436
|
| 7.62mm x 23mm SJLC, 86 gr |
1,475
|
450
|
| 7.62mm x 39mm LC, 123 gr |
2,400
|
732
|
| .40S&W GDHP, 180 gr |
1,025
|
312
|
Blunt Impact Protection: <150 G’s at 10 ft/s per ACH CO/PD 05-04: 2007
SHELL SIZING & COVERAGE
| Available Sizes | Medium | Large | X-Large | XX-Large |
| Head Size (Circumference) | 20 7/8 - 22 in (53-56cm) | 22 - 23 1/4 in (56-59cm) | 23 1/4 - 24 3/8 in (59-62cm) | 24 3/8 – 25 1/8 in (62-64 cm) |
| Square Coverage | 142in² (916 cm² ) | 154in² (994cm²) | 167in² (1077cm²) | 176 in² (1135cm²) |
SHELL WEIGHT
| Available Sizes ** | Medium | Large | X-Large | XX-Large |
|
FAST XR Shell Weight (Shell with Paint & Edge Band) |
1.57lbs (713g) | 1.72lbs (780g) | 1.89lbs (856g) | 1.97lbs (894g) |
SYSTEM WEIGHT
| Available Sizes ** | Medium | Large | X-Large | XX-Large |
|
FAST XR System Weight (FAST XR Shell with Vented Lux Liner w/ Occ-Dial Universal Fitband) |
2.68lbs (1214g)
|
2.81lbs (1275g)
|
3.02lbs (1370g)
|
3.11lbs (1409g)
|
(**Estimated calculations of weights) Note: All measurements are +/- 3% tolerance
Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg), Side-Side = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) lbs. per MICH Type II FQ/PD 06-35C: 2013
Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot +160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007
| Shell Construction: | Two-Stage Non Slit |
| Available Sizes: | Medium (M), Large (L), X-Large (XL), XX-Large (XXL) |
| Shell Thickness: | 0.280”(M) 0.290” (L/XL/XXL) |
| Shell Geometry (Curvature): | FAST |
| Cut Style (Side Protection): | High Cut |
| Available Colors: | Tan, Ranger Green, Black, Multicam & Urban Gray |
